CO2-Filling Unit
KUD1-WA · No. 202 000

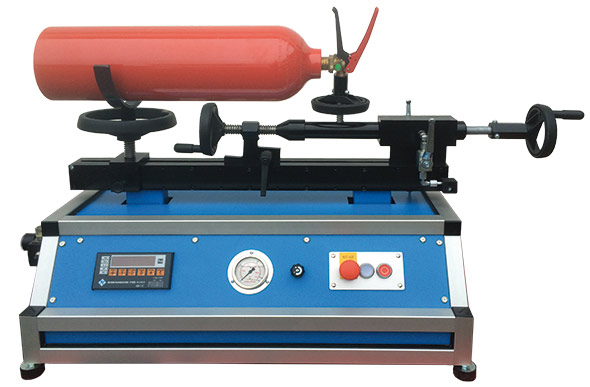

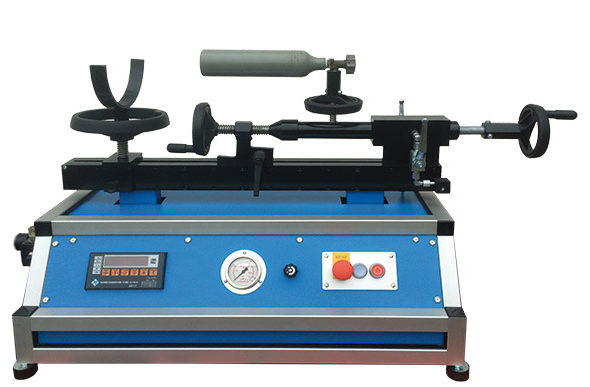

Compressed air driven CO2 filling unit for filling CO2 cartridges from 20 g to 6 kg CO2 bottles.
| TECHNICAL DATA |
|---|
| Dimensions (l x w x h) | approx. 1100 x 500 x 600 mm |
| Construction | aluminium |
| Pump | 1-piston-pump |
| Motor | 10 bar compressed air (approx. 800 NL/min) |
| Filling capacity | approx. 3 kg/min |
| Weight | approx. 70 kg |
The unit is extra equipped with:
- digital scale, max. 30 kg, 10 g resolution
- continuous speed regulation of the pump
- automatic shutdown
- CO2 disposal hose
Available at extra charge:
- EXTRA CO2 filter
